The New Carlson BRx6 GNSS Base Rover Available for Sale.

The BRx6 is Carlson’s all-new multi-GNSS, multi-frequency, smart antenna. The BRx6 provides robust performance and high precision in a compact and rugged package. With multiple wireless communications ports and an open GNSS interface, the BRx6 can be used as a precise base station or as a lightweight and easyto-use rover.

World-Class Athena RTK Technology:

The BRx6 receiver is powered by a state-of-the-art Athena RTK engine. With multiple connectivity options, the BRx6 allows for RTK corrections to be received over radio, cell modem, Wi-Fi, Bluetooth, or serial connection.

Integrated Atlas L-band Receiver:

The BRx6 receiver also enables users to work with subscription-based Atlas service, Hemisphere's industry leading global correction service provided over L-band communication satellites and the internet. With this service, BRx6 users experience sub-decimeter positioning performance anywhere on earth, without the need to be near a GNSS or communication infrastructure.

GPS Receiver

Receiver Type:

Positioning Modes:

Channels:

RTK Formats:

Update Rate/Recording Interval:

Performance*

RTK:
Static Performance (long occupation):

Static Performance (long occupation):

L-band Performance

SBAS (WAAS):

Autonomous, no SA:

Multi-Frequency GNSS

RTK, L-band DGNSS/HP/XP, SBAS, External RTCM, Autonomous

372

CMR, CMR+, RTCM3.0, RTCM3.1, ROX

Selectable from 1, 2 and 5 Hz
Horizontal

Horizontal Vertical
10 mm + 1 ppm 20 mm + 1 ppm
3 mm + 0.1 ppm 3.5 mm + 0.4 ppm

3 mm + 0.5 ppm 5 mm + 0.5 ppm

0.08 m 0.16 m

0.3 m 0.6 m

1.2 m 2.4 m

Communication

Connectors I/O:

Radio:

Memory

SIM card:

Memory:

SD card:

5-pin Lemo connector for external power supply and external radio devices

7-pin Lemo connector for USB OTG connection and serial port interface

1 TNC antenna connector for internal radio

1 TNC antenna connector for cell modem

Frequency Range: 410-470 MHz

Channel Spacing: 12.5 KHz / 25 KHz

Emitting Power: 0.5 / 1 W

User accessible SIM card slot

Internal 4GB, accessible through USB and Wi-Fi

External Micro SD card slot, supports up to 64GB

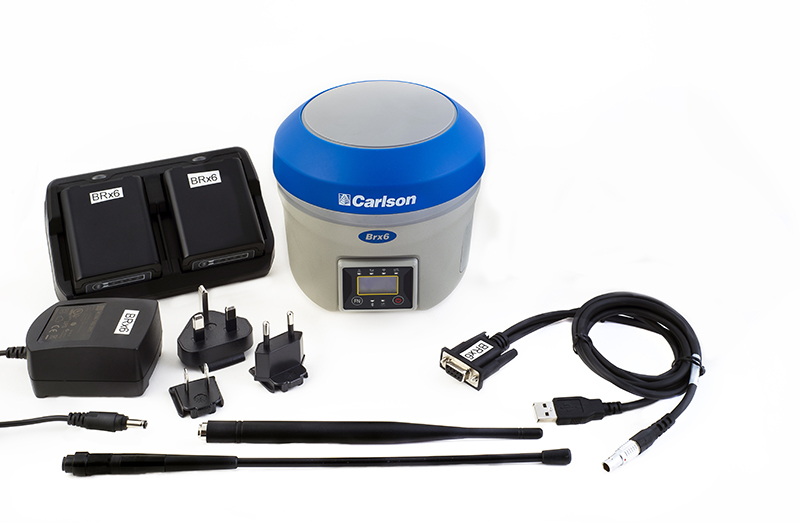

Includes:

2 Carlson BRx6 GPS Base/Rover Receiver (Can be used as either a base or a rover)
1 Carrying Case + Measuring Tape
2 External Power Cable with Alligator Clip
4 BRx6 Battery
1 GPS Tribrach (Optical Plummet)
2 Battery Charger (Charger Tray, AC/DC Power Cord, Cigarette Cable)
2 Carlson GPS Receiver Pole
2 Power/Data Cable with Wall Plug
1 Tribrach Adapter
2 410-430 MHz Radio Whip Antenna
1 1.405 inch/35.7mm Height Adaptor
